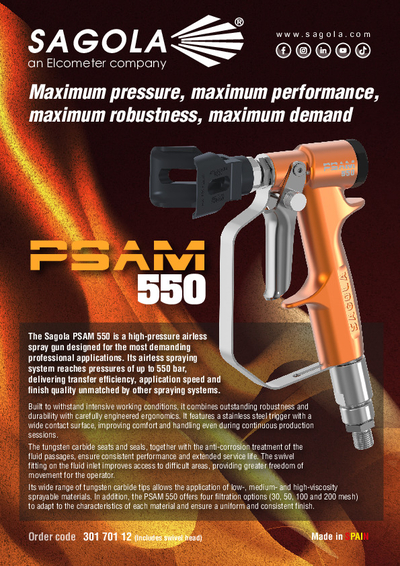

Maximum pressure, maximum performance, maximum robustness, maximum demand
The Sagola PSAM 550 is a high-pressure airless spray gun designed for the most demanding professional applications. Its airless spraying system reaches pressures of up to 550 bar, delivering transfer efficiency, application speed and finish quality unmatched by other spraying systems.
Built to withstand intensive working conditions, it combines outstanding robustness and durability with carefully engineered ergonomics. It features a stainless steel trigger with a wide contact surface, improving comfort and handling even during continuous production sessions.
The tungsten carbide seats and seals, together with the anti-corrosion treatment of the fluid passages, ensure consistent performance and extended service life. The swivel fitting on the fluid inlet improves access to difficult areas, providing greater freedom of movement for the operator.
Its wide range of tungsten carbide tips allows the application of low-, medium- and high-viscosity sprayable materials. In addition, the PSAM 550 offers four filtration options (30, 50, 100 and 200 mesh) to adapt to the characteristics of each material and ensure a uniform and consistent finish.
| Weight: (with swivel head) | 670 grams |
| Dimensions: (with swivel head) | 16.8 x 22.7 cm. (6.6 x 8.9 “) |
| Handle width | 4.3 cm. (1.71") |
| Product inlet connection | BSP 1/4” M Swivel |
| Product deposit | Fluid supply through Airless pump |
| Product filter | 30/50/100/200 mesh |
| Maximum working pressure | 550 bar (7,977 psi) |
| Product outlet | 3.20 mm (0.126”) diffuser head |
| Operating temperature range | 0 - 60°C (32 - 140°F) |
| Materials in contact with the product | Stainless steel, aluminium, anodised aluminium, polyamide, PTFE, UHMWPE, tungsten carbide and copper |
| Code | Version |
|---|---|
| 30170112 | Spray Gun Airless Psam 550+swivel Head |
| 30170113 | Spray Gun Airless Psam 550 |
