Attention! Exclusive product for the Spanish, Portuguese, Andorran, and Mexican markets.

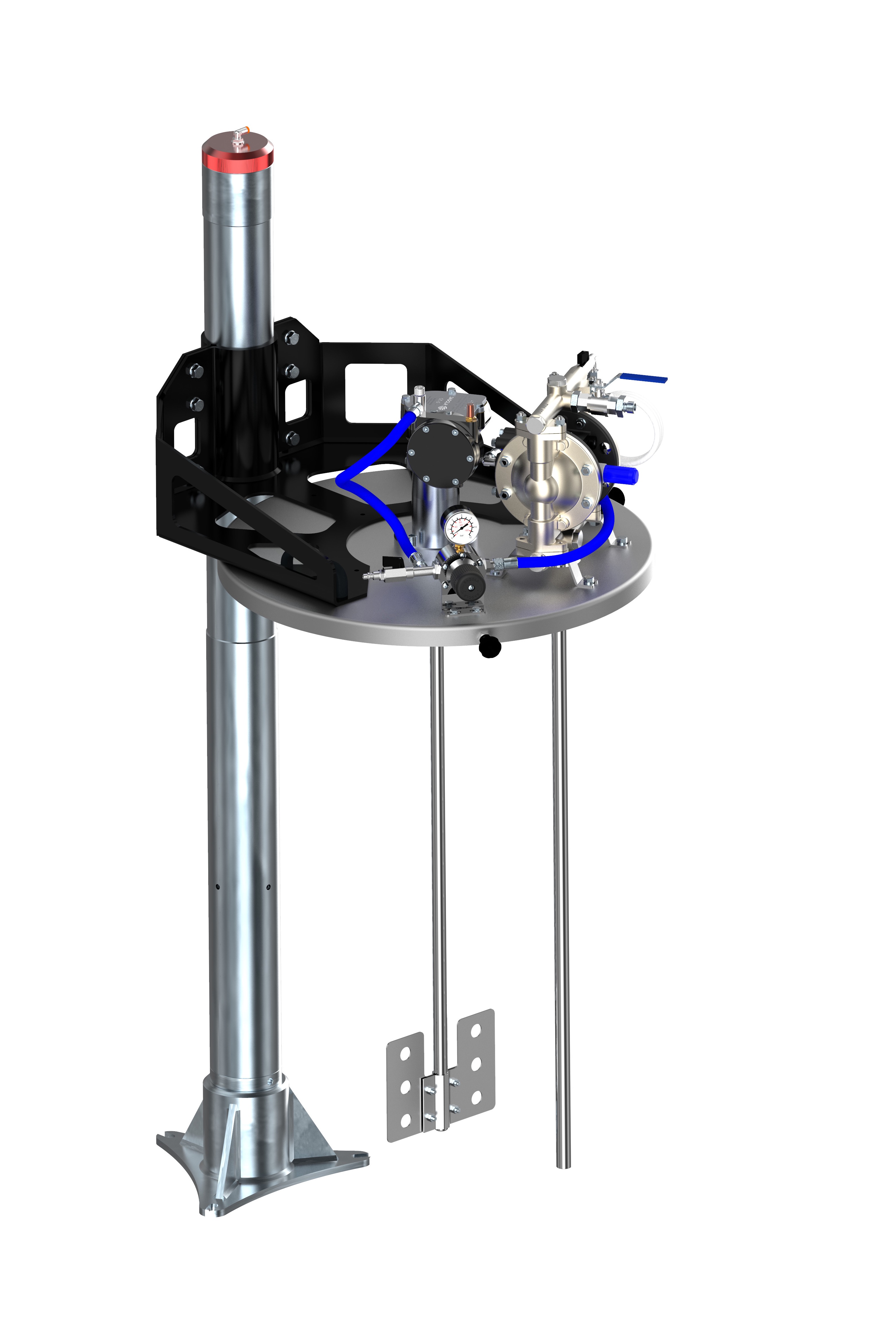

Sagola presents the Pneumatic Lift Pilot, designed to lift the lids of 200-liter drums it markets, facilitating drum changes.
Having a pneumatic mechanism greatly simplifies the task of lifting the lid along with all possible accessories (pumps, stirrers...), which together can be quite heavy.
Performing this task manually can introduce risks and difficulties that are eliminated by using this lift.
It consists of a single-acting pneumatic cylinder, operated by a manually actuated pneumatic valve.
It features a robust steel body and support, with high-quality components. The base is supported by M12 bolts for stability and firmness.
This equipment is intended solely for professional use.
| Dimensions | 1,556 x 520 x 646 mm. |
| Maximum height (high position) | 2,506 mm. |
| Piston stroke | 950 mm. |
| Maximum lifting load | 45 Kg. |
| Air inlet | Swivel fitting for Ø4 mm tube. 1/4” |
| Manual pneumatic valve | Manual operation. 3 ways, 2 positions |
| Working pressure (air inlet) | 4 bar (58 psi) |
| Rise time (at 4 bar) | Approx. 12 seconds |
| Down time | Approx. 50 seconds (Decompression + descent) |
| Lubricant | SAE 20 |
| Anchor base to the ground | 3 M12 screws |
| Materials | Aluminum, Steel, Polyamide and NBR |
| Code | Version |
|---|---|
| 13010000 | Drum Cover Elevator |
Elevador de tapas para bidones

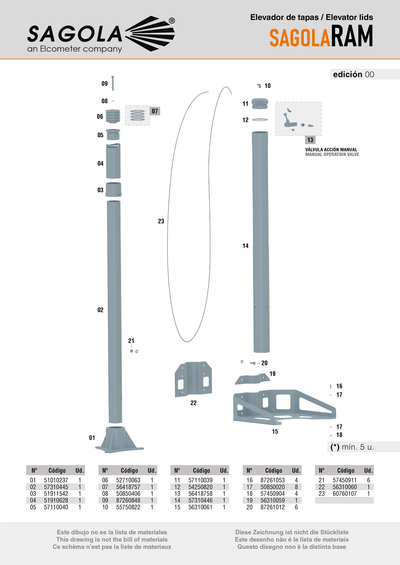

Exploded view
