Wide range of applications with the support of a pressure pot or a low pressure pump. Compliance with the most demanding rules concerning solvent emission.
4100 Xtreme EPA
The most environmentally-friendly solution withoutlosing sight of profitability or finish quality. It offers high paint transfer without increasing air consumption or any special application requirements. Maximum gloss with the most demanding finishes.
4100 Xtreme HVLP
Maximum paint saving and solvent emission reduction. Paint transfers up to 75%, much higher than the required by regulation. Maximum paint control. Especially recommended for color, metal and dye applications. Outlet pressure of only 0.7 bar High speed aircap XT03 and special aircap 3030 for processes where the motto is minimum mist and maximum painting.
4100 Xtreme Medium Pressure
Wide range of applications, even high viscosity, with the support of a pressure pot or pressurized pump. Paint flow above 330cc/min and large fans.
Application possibility for all kind of paints and sprayable products: dyes, metals, glazes, varnishes, basecoats, primers, glues, adhesives, abrasive products, ceramics, forge effect (special T.C.), textured, etc.
| Air Cap XT01 B | |||
|---|---|---|---|
|
1.00 | Special metalized and basecoats | |
| 1.20 | Clearcoats and primers | ||
| 1.40 | Primers and fillers | ||
| Air Cap Super VIT | |||
|---|---|---|---|
|
1.00 | Special metalized and basecoats | |
| 1.20 | Clearcoats and primers | ||
| 1.40 | Primers and fillers | ||
| Air Cap XT03 | |||
|---|---|---|---|
|
1.00 | High quality finishes. Basecoats, dyes | |
| 1.20 | General finishes. Primers | ||
| Air Cap 3030 | |||
|---|---|---|---|
|
1.20 | Minimum mist. Industrial finishes | |
| 1.40 | Minimum mist. Primers, basecoats | ||
| Air Cap 777 | |||
|---|---|---|---|
|
1.00 | Maximum speed | |
| 1.20 | Finishes, high gloss | ||
| Air Cap 765 | |||
|---|---|---|---|
|
1.00 | High quality finishes | |
| 1.20 | General finishes. Primers | ||
| 1.40 | Primers, basecoats | ||

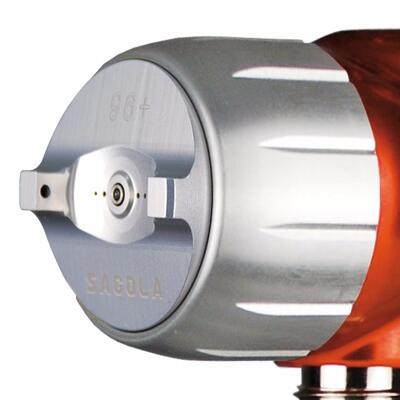

| Air Cap 20A | |||
|---|---|---|---|
|
1.80 | Glues, adhesives | |
| Weight | 536g |
| Dimensions | 20 x 18 x 4.2 cm |
| Air inlet coupling BSP | 1/4” male |
| Product inlet coupling BSP | 3/8” male |
| Design pressure | 8 bar |
| Maximum recommended inlet pressure (working pressure) | 2.5 - 3.0 bar (Medium pressure) |
| Maximum recommended inlet pressure (working pressure) | 2.0 bar (HVLP and EPA) |
| Maximum recommended application distance | 20 - 25 cm (Medium pressure) |
| Maximum recommended application distance | 15 - 20 cm (HVLP and EPA) |
| Air consumption Aircap 765 | 370 L/min |
| Air consumption Aircap 777 | 400 L/min |
| Air consumption Aircap 20A | 470 L/min |
| Air consumption Aircap XT01 B | 320 L/min |
| Air consumption Aircap XT03 | 530 L/min |
| Air consumption Aircap 3030 | 570 L/min |
| Materials in contact with the product | INOX, chromed aluminium, POM, Teflon, Nylon |
| ATEX | (Ex) 2 II GX |
| Code | Version |
|---|---|
| 10152101 | Spray Gun 4100 XTREMEPress.1.00[765] |
| 10152102 | Spray Gun 4100 XTREMEPress. 1.20[765] |
| 10152103 | Spray Gun 4100 XTREMEPress. 1.40[765] |
| 10152104 | Spray Gun 4100 XTREMEPress. 1.00[777] |
| 10152105 | Spray Gun 4100 XTREMEPress. 1.20[777] |
| 10152106 | Spray Gun 4100 XTREMEPress. 1.80[20a] |
| 10152107 | Spray Gun4100XTREMEPress.1.00[xto3]HVLP |
| 10152108 | Spray Gun4100XTREMEPress.1.20[xto3]HVLP |
| 10152109 | Spray Gun4100XTREMEPress.1.00[XT01B]EPA |
| 10152110 | Spray Gun4100XTREMEPress.1.20[XT01B]EPA |
| 10152111 | Spray Gun4100XTREMEPress.1.40[XT01B]EPA |
| 10152112 | Spray Gun 4100 XTREMEPress. 1.20[3030] |
| 10152113 | Spray Gun 4100 XTREMEPress. 1.40[3030] |
| 10152114 | Spray Gun 4100 XTREMEPress.1.00[SUPVIT] |
| 10152115 | Spray Gun 4100 XTREMEPress.1.20[SUPVIT] |
| 10152117 | Spray Gun 4100 XTREMEPress.1.40[SUPVIT] |
