SAGOLA presents its top technological expression in bodywork finishing spray guns. Smaller, lighter, with optimal weight distribution and more comfortable.
With a new shiny and modern design and most carefully designed ergonomics which offer enviable balance and usability and perfect mechanisation. SAGOLA tackles all present challenges of vehicle refinishing. With this model SAGOLA offers the widest range of solutions for all the new paints launched by the main paint brands for refinishing.
The New 4600 Xtreme is launched with the highest SAGOLA manufacturing standards, competitive prices whilst maintaining a superb service and offering the best warrantee (3 years). All this with strict compliance with the most demanding standards of manufacture and emissions of solvents, with XTREME and XTREME HVLP systems.
The new DVR AQUA and DVR HVLP aircaps enhance the application of waterborne products, regardless the level of viscosity. Even distribution of paint through the spray pattern.
The new aircap DVR CLEAR together with the innovative nozzle 1.3XL means a milestone at the ease and speed of application with the new HS clearcoats.
NEW NOZZLES DV
Made of stainless steel. High paint flow. Maximum speed of application. 15 - 20% higher product transfer.
NEW AIRCAPS
DVR AQUA - DVR CLEAR - DVR HVLP - DVR TITANIA Ultra-fine paint particle
size and bigger spray patterns. They get higher transfer and greater
efficiency.
AIR DISTRIBUTION SYSTEM
Carried out at the tip of the air cap, it creates a finer and smoother spray.
P 08380132.4 / MD 200701164
PROGRESSIVE ACTION VALVE
“SOFT FLOW”
Higher precision and smoothness, even with high air pressure.
PRODUCT REGULATOR DESIGN
Modern design without sharp edges, it makes easier cleaning. New
stainless steel guide box. Built in vernier for precise flow regulation.
SPRAY FAN REGULATOR
With connection in stainless steel. With less travel and greater precision. Suitable for right and left handed.

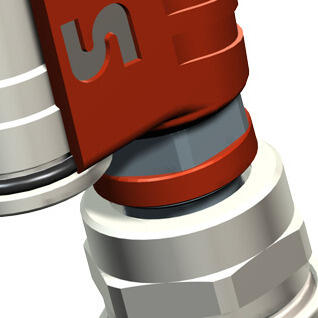

NEW COLOR IDENTIFIER
COLOR CODE. Perfect for differentiation spray guns when there are multiple painters.
| Air Cap DVR CLEAR | |||
|---|---|---|---|
|
1.20 | Low viscosity clearcoats | |
| 1.20 XL | Low viscosity clearcoats. Express drying | ||
| 1.30 | HS Clearcoats. Quality finishes | ||
| 1.30 XL | Clearcoats and HS Single Stage. High speed | ||
| 1.40 | Clearcoats and HS Single Stage. Industrial Bodyshop | ||
| Air Cap DVR TITANIA PRO | |||
|---|---|---|---|
|
1.20 XL | Low viscosity clearcoats | |
| 1.30 | Multiproduct, Clearcoats, Single Stage and Basecoats | ||
| 1.30 XL | Clearcoats and Single Stage | ||
| 1.40 | Clearcoats, Single stage. Industrial bodyshop | ||
| Air Cap DVR AQUA | |||
|---|---|---|---|
|
1.20 | Waterborne paints. Xtreme finishes | |
| 1.20 XL | Waterborne paints. Low viscosity | ||
| 1.30 | Special waterborne paints | ||
| 1.30 XL | Waterborne paints. High speed | ||
| Air Cap DVR HVLP | |||
|---|---|---|---|
|
1.30 | Water and solvent based basecoats | |
| 1.30 XL | Water and solvent based clearcoats. High speed | ||
| 1.40 | Water and solvent based basecoats, Clearcoats and Single Stage | ||
| Weight without cup | 482 grams |
| Weight with cup | 668 grams |
| Dimensions with cup | 33,5 x 10,6 x 17 cm. |
| Air inlet couplings | 1/4" |
| Cup capacity | 650 ml. |
| Cup | Removable anti-drip system |
| Paint filter | 80-mesh |
| Maximum recommended inlet pressure (working pressure) | 2 bar |
| Maximum recommended application distance DVR TITANIA PRO | 18 - 20 cm. |
| Maximum recommended application distance DVR CLEAR | 18 - 20 cm. |
| Maximum recommended application distance DVR AQUA | 18 - 20 cm. |
| Maximum recommended application distance DVR HVLP | 12 - 15 cm. |
| Average paint output flow (nozzle 1.4 mm. 20”) DVR TITANIA PRO | 233 g/min. |
| Average paint output flow (nozzle 1.4 mm. 20”) DVR CLEAR | 227 g/min. |
| Average paint output flow (nozzle 1.4 mm. 20”) DVR AQUA | 239 g/min |
| Average paint output flow (nozzle 1.4 mm. 20”) DVR HVLP | 210 g/min. |
| Air consumption of each aircap (2 bar inlet) DVR TITANIA PRO | 315 L/min. |
| Air consumption of each aircap (2 bar inlet) DVR CLEAR | 295 L/min. |
| Air consumption of each aircap (2 bar inlet) DVR AQUA | 280 L/min. |
| Air consumption of each aircap (2 bar inlet) DVR HVLP | 450 L/min. |
| Fan size DVR TITANIA PRO | 265 - 285 mm. |
| Fan size DVR CLEAR | 285 - 300 mm. |
| Fan size DVR AQUA | 295 - 300 mm. |
| Fan size DVR HVLP | 280 - 300 mm. |
| Average sound pressure level | 80 dB |
| Materials in contact with the product | Anodized aluminium, POM, INOX, Teflon and Nylon |
| Warranty | 3 years |
| ATEX | II 2G Ex ia IIC T4 GB CE 0163 LOM 05ATEX 2091 X |
| ATEX regulation | || 2G 4T x |
| Community Design | Patent | |
|---|---|---|
| Paint packing | 07380321.5 | |
| Shape design | 3.300.029 | |
| Aircaps with air deflector | 08380132.4 |
| Code | Version |
|---|---|
| 10142239 | Spray Gun 4600 Digital 1.20 [DVR HVLP] |
| 10142217 | Spray Gun 4600 1.20 (DVR TITANIA) |
| 10142236 | Spray Gun 4600 Digital 1.20 [DVR TITANIA |
| 10142201 | Spray Gun 4600 1.20 (DVR AQUA) |
| 10142202 | Spray Gun 4600 1.30 (DVR TITANIA) |
| 10142203 | Spray Gun 4600 1.30 (DVR AQUA) |
| 10142204 | Spray Gun 4600 1.30 (DVR CLEAR) |
| 10142205 | Spray Gun 4600 1.30 (DVR HVLP) |
| 10142206 | Spray Gun 4600 1.30XL (DVR CLEAR) |
| 10142207 | Spray Gun 4600 1.30XL (DVR TITANIA) |
| 10142208 | Spray Gun 4600 1.30XL (DVR AQUA) |
| 10142209 | Spray Gun 4600 1.30XL (DVR HVLP) |
| 10142210 | Spray Gun 4600 1.40 (DVR TITANIA) |
| 10142212 | Spray Gun 4600 1.40 (DVR CLEAR) |
| 10142213 | Spray Gun 4600 1.40 (DVR HVLP) |
| 10142214 | Spray Gun 4600 1.20XL (DVR TITANIA) |
| 10142215 | Spray Gun 4600 1.20XL (DVR AQUA) |
| 10142216 | Spray Gun 4600 1.20XL (DVR CLEAR) |
| 10142218 | Spray Gun 4600 1.20 (DVR CLEAR) |
| 10142221 | Spray Gun 4600 Digital 1.20 [DVR AQUA] |
| 10142222 | Spray Gun 4600 Digital 1.30 [DVR Titana] |
| 10142223 | Spray Gun 4600 Digital 1.30 [DVR AQUA] |
| 10142224 | Spray Gun 4600 Digital 1.30 [DVR CLEAR] |
| 10142225 | Spray Gun 4600 Digital 1.30 [DVR HVLP] |
| 10142226 | Spray Gun 4600 Digital 1.30XL[DVR CLEAR] |
| 10142227 | Spray Gun 4600 Digital 1.30XL [TITANIA] |
| 10142228 | Spray Gun 4600 Digital 1.30XL [DVR AQUA] |
| 10142229 | Spray Gun 4600 Digital 1.40 [DVR TITANIA |
| 10142231 | Spray Gun 4600 Digital 1.40 [DVR CLEAR) |
| 10142232 | Spray Gun 4600 Digital 1.40 [DVR HVLP) |
| 10142233 | Spray Gun 4600 Digital 1.20XL [DVR Titan |
| 10142234 | Spray Gun 4600 Digital 1.20XL [DVR AQUA] |
| 10142235 | Spray Gun 4600 Digital 1.20XL [DVR CLEAR |
| 10142237 | Spray Gun 4600 Digital 1.20 [DVR CLEAR) |
| 10142238 | Spray Gun 4600 Digital 1.30XL [DVR HVLP] |
